Viewing Fabrics

Myrna Ailabouni

Updated April 25, 2023 17:13

To view fabrics:

If the Materials tab is not already open, on the Resources tabs, click Materials.
If not already open, click the Garment tab.
Go to the Fabrics section. A thumbnail is displayed for each fabric.

To change the thumbnail size, at the top of the Materials tab, click Menu

, then click the desired thumbnail size. .

Hover over a fabric thumbnail to view options.

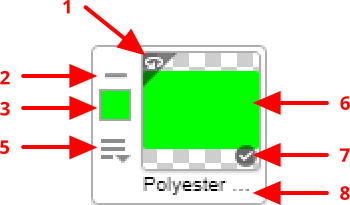

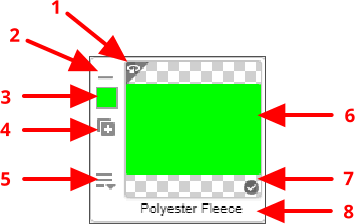

Small and medium thumbnail (image enlarged)	Large thumbnail

Label	Description
1	The reverse icon displays if the face and back of the fabric are different colors, or have different diffuse texture images. Hover over the icon to switch between the two sides of the fabric.
2	Displays if the fabric is assigned to a piece. Click to remove the fabric from all pieces. If the fabric is not assigned to a piece, is displayed. Click to delete the fabric.
3	Swatch of the diffuse color. Click to display the color dialog box. For more information, refer to Color Library and Picker Interface Reference. Select a color to change the diffuse color.
4	Large thumbnail only. Click to clone the fabric. Note: If using small or medium thumbnails, Clone Fabric displays in the menu described in label 5.
5	Click to display a menu. 2020 May Edition and newer For vector fabrics: Note: If using large thumbnails, Clone Fabric displays instead as a separate icon.
6	How the fabric texture displays.
7	The icon displays if the fabric is assigned to a piece.
8	Fabric name.

For more information, refer to Viewing Fabric Properties.
