Stylezone 3D Viewer

Stylezone 3D Viewer

The Stylezone 3D viewer allows you to view a style on an avatar or alone in 3D from all angles. Use the zoom in/out, pan and spin navigation functions to view the style in 360 degrees. To activate the 3D viewer you need to upload a GLB file of a 3D object to Stylezone.

Note: The new ​Pre-load 3D view​​ option under the Profile > View ​menu pre-loads the 3D Viewer while accessing a style allowing for improved viewing performance. This option is enabled by default for all users and can be turned off if necessary.

To upload a GLB file to Stylezone:

  1. There are two ways to upload a GLB file to Stylezone:

    • Via the Stylezone Edit Styles page, as described in this article.

    • Via the Share dialog box in VStitcher (Version 2022.2 and newer). For information on this option, see Uploading Styles With Lotta or VStitcher.

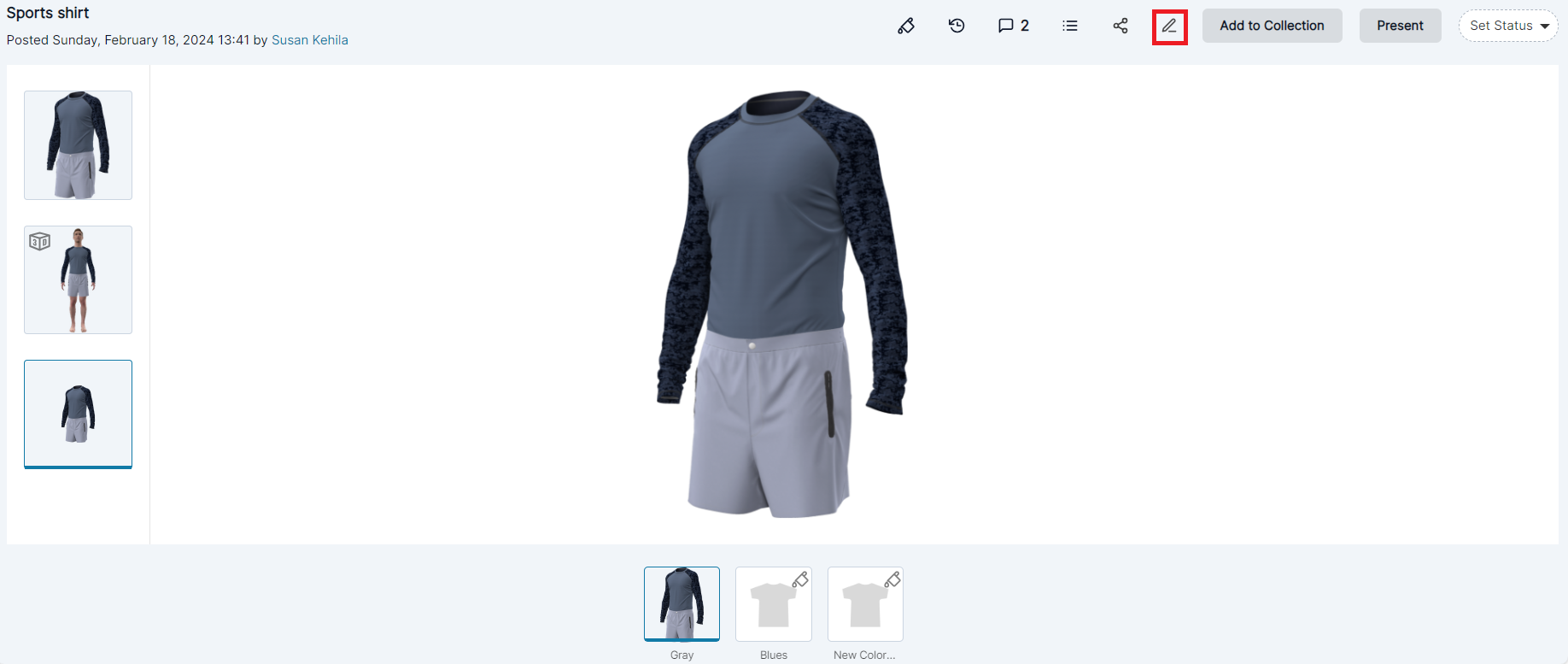

  2. Go to the relevant style. At the top right of the review window select the Edit Style button.


    The Edit styles page is displayed.

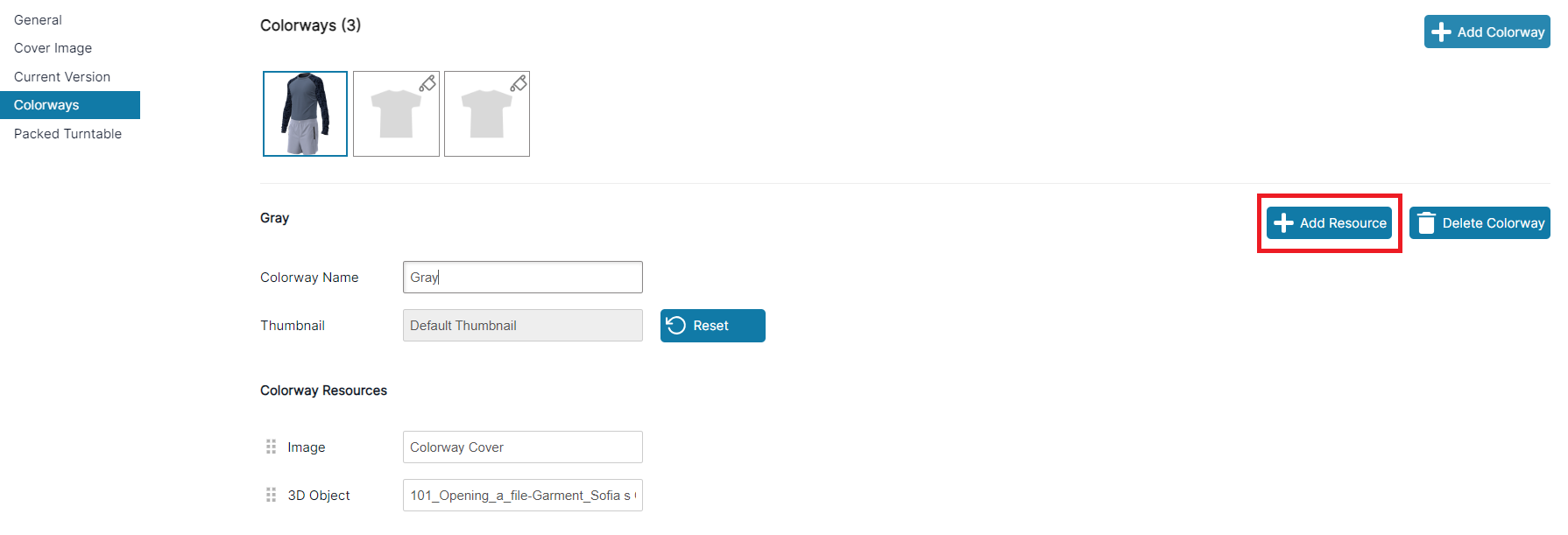

  3. In the Edit styles page, under the Colorways section, select the Add Resource button.


  4. Choose a GLB file for the 3D object from the folders on your computer. You may export a GLB file from VStitcher via the Render dialog box. For more information refer to Exporting Garments as 3D Objects

    Wait for the file to upload, this may take a while.

To view the 3D object:

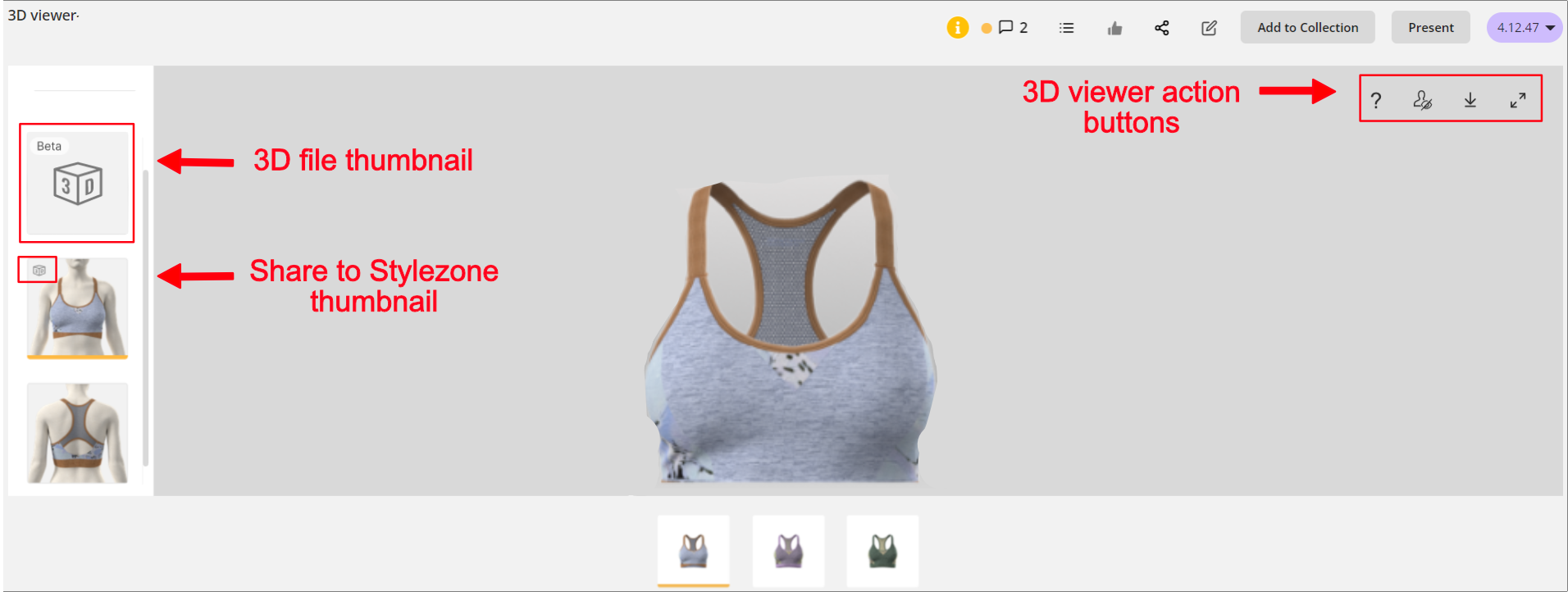

  1. Open the Style review page. On the left side of the Style review page, a 3D thumbnail is displayed of the selected GLB file.

    3D thumbnail

    • Note that a GLB file uploaded from Stylezone, and a GLB file that is exported with Share to Stylezone have different thumbnails.

  2. Click the 3D object thumbnail, and wait for the GLB file to load. You may review other thumbnails on the same style review page while the file loads; the loading process does not stop as long as you are on the same page.

  3. Use the action buttons in the top right of the review page to perform various actions, as described in the table below:

3D viewer display

Icon Description

Full screen button

Use this button to enable full screen mode


​​Click to view and edit the HDRI Lights options
Download style Click to download the file.
Hide avatar button

Show avatar

Toggle to show or hide the avatar. This feature supports GLB files of VStitcher version 2022.2.0 and newer only.

Note that this button is displayed only when an avatar exists.

Help button

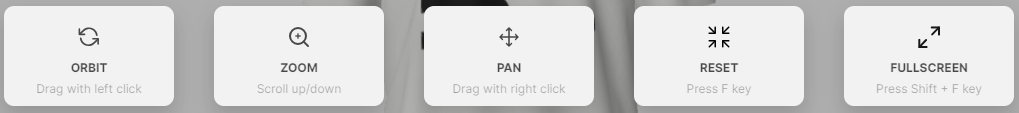

Select to display navigation instructions


  • To ​orbit​ the style, hold the ​left click​​ on the mouse and drag. Or click the scroll wheel on the mouse and hold while dragging.
  • ​To ​pan​ the style, hold the ​right click​​ on the mouse and drag.
  • ​To ​zoom in and out​​ on the style, use the scroll wheel on the mouse.
  • ​To reset and re-center the current view, press the ​F key​​.



HDRI Lights Options

Once a ​3D object​ is uploaded, you can change the default HDRI light settings by fine-tuning the ​Exposure ​​and ​Rotation ​​values.
Drag the slider to change the values or enter the values manually. Click ​​​reset.PNG​​​ to reset the values.

Note: The HDRI light settings are not saved between sessions.
