Thickness Test

To run the test:

  1. On the list on the left side of the page, click Thickness. The following screen is displayed.

    Thickness test start

  2. Type the sample width into Enter fabric width. (The default is 5 cm.)

  3. Remove any sample fabric from the machine.

  4. Click Start. The movable clamp moves into place.

  5. Position the fabric sample on the FAB according to these instructions.

  6. Click Start.

    Thickness test

    The test is complete when two blue ticks are displayed on the right side of the page.

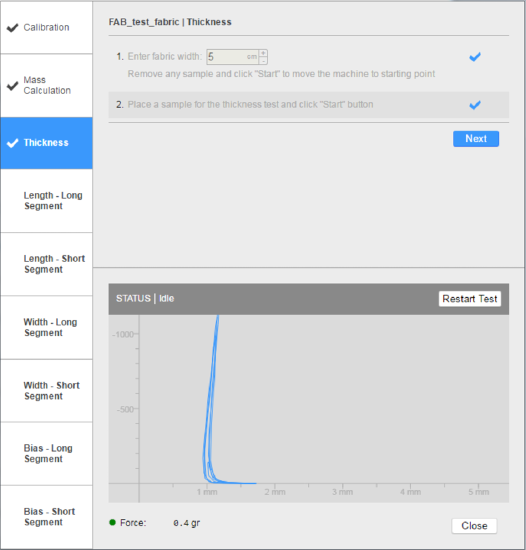

    Thickness test complete

  7. Remove the fabric sample.

  8. Click Next.



Positioning the Fabric for the Thickness Test

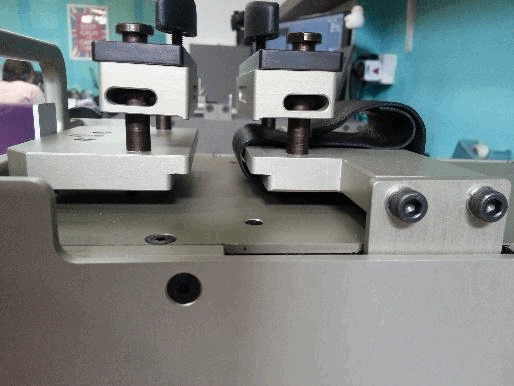

Positioning the fabric

To position the fabric:

  1. Ensure both clamps are up by loosening the each tightening knob and lifting the top until it stays in the open position.

  2. Position the sample on the movable clamp.

  3. Slide the sample along the base plate, under the bar and the movable clamp, and flip the end over the lower piece of the movable clamp, back onto the bar.

  4. Roll up the excess so that it fits within the stopper on the movable clamp.

The following images show how to position the fabric.

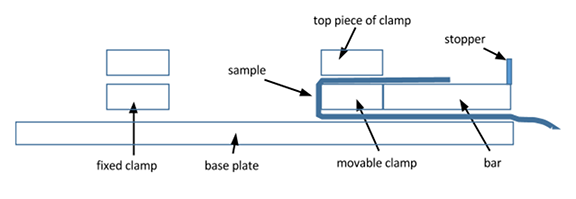

Side View

Side view positioning fabric

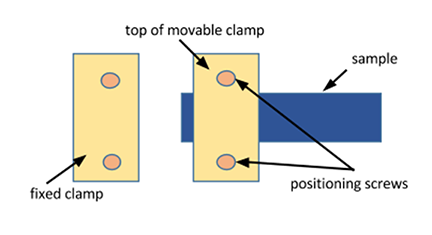

Top View

Top view positioning fabric

Positioning the fabric

To position the fabric:

  1. Ensure both clamps are up by loosening the each tightening knob and lifting the top until it stays in the open position.

  2. Position the sample on the movable clamp.

  3. Slide the sample along the base plate, under the bar and the movable clamp, and flip the end over the lower piece of the movable clamp, back onto the bar.

  4. Roll up the excess so that it fits within the stopper on the movable clamp.

The following images show how to position the fabric.

Side View

Side view positioning fabric

Top View

Top view positioning fabric
