To install the Browzwear application using a network license, do the following in order:
Note
Port 1947 must be open for client machines to communicate with the HASP key.
-
Download the Sentinel runtime and install on the server machine:
-
Click here.
-
Search for:
-
Mac: Sentinel HASP/LDK Mac OS X Run-time GUI Installation
-
Windows: Sentinel HASP/LDK - Windows GUI Run-time Installer
-
-
Download and install the appropriate file.
-
-
Plug the HASP key (license dongle) into your computer.
-
Open your internet browser and go to http://localhost:1947/_int_/devices.html to check the HASP key is available and visible in the server.
To install on a client workstation, complete the following steps, in order:
Install Browzwear Software Applications
Installation for VStitcher and Lotta
-
If using a cloud license
-
Ensure the user has a cloud license. For more information, refer to Cloud Licensing Overview.
-
Run the installation file. Ensure you run the installation file as an administrator.
-
Follow the on-screen instructions, including those for activating the cloud license in the Browzwear Connect pane.
Tip

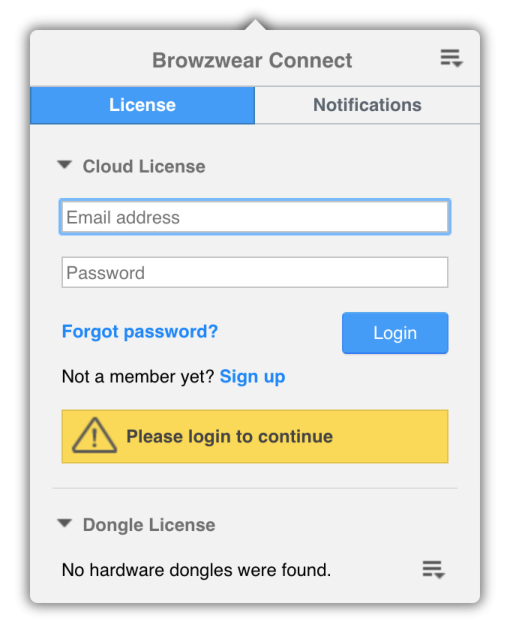

If the Browzwear Connect pane no longer displays, you can view it by going to your taskbar (Windows) or menu bar (Mac), and clicking
. The Browzwear Connect pane is displayed.
If you have difficulty accessing the internet, refer to Check Internet Connectivity. An internet connection is required for cloud licensing.
-
-
If using a dongle
-
Ensure a dongle with valid license is plugged into the license server and the client machine is on the same network as the license server.
-
Run the installation file. Ensure you run the installation file as an administrator.
-
Follow the on-screen instructions.
Connect to Photoshop and Blender - Optional
You can connect to Adobe Photoshop for image editing and Blender for ray trace rendering. To link to these programs, follow the instructions below:
Photoshop
-
In Lotta or VStitcher, go to:
-
(Windows) Edit > Preferences
-
(Mac) Lotta/VStitcher > Preferences
-
-
Click Images & Colors.
-
In Image Editor, click Browse. A file explorer window is displayed.
-
Navigate to the location of the Photoshop application file, select it, and click Open.
-
On the Preferences dialog box, click OK.
Blender
-
Go to https://browzwear.com/services/downloads/rendering/ and download the appropriate Blender file.
-
Run the install file and follow the on-screen instructions to complete the Blender installation.
-
In Lotta or VStitcher, go to:
-
(Windows) Edit > Preferences
-
(Mac) Lotta/VStitcher > Preferences
-
-
Click Rendering.
-
In Ray-Trace Renderer:
-
Click
, then click Blender.
-
If you want to use a remote render resource, select Remote (Blender) then click the drop-down and select the resource you want to use.
-
If you want to use local rendering:
-
Select Local (Blender).
-
In Blender Path, click Browse. A file explorer window is displayed.
-
Navigate to the location of the Blender application file, select it, and click Open.
Note
Note: Select the Blender.app or Blender.exe. Do not select the Blender Player.
-
Leave Render Command empty.
-
-
-
On the Preferences dialog box, click OK.
