There are the following tests for the bias sample:
-
Long segment test
-
Short segment test
To run the long segment test:
-
If not already at the FAB user interface, start the FAB, open DB Admin, and click Use FAB. For more information, refer to Using the FAB.
-
On the list on the left side of the page, click Bias - Long Segment.
-

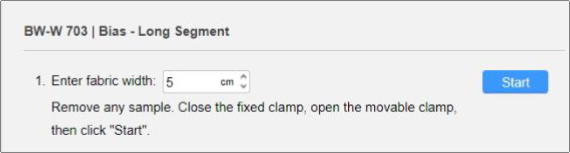

At Enter fabric width, type in the sample width. (The default is 5 cm.)
-
Remove any sample fabric from the machine.
-
Ensure that the:
-
Fixed (or stationary) clamp is closed.
-
Movable clamp is open.
-
-
Click Start. The movable clamp moves into place.
-

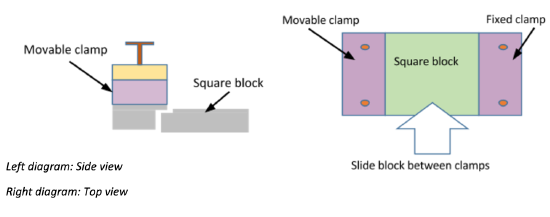

Slide the square block between the clamps. The grooved edge should face the movable clamp.
-

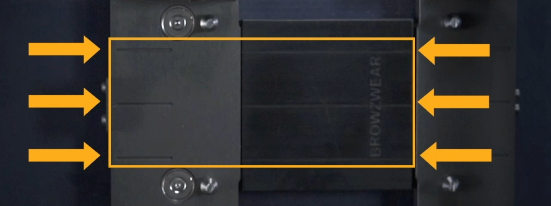

Position the fabric sample on the FAB according to Positioning Fabric for Long Segment Tests.
-
Remove the block.
-
Click Start.

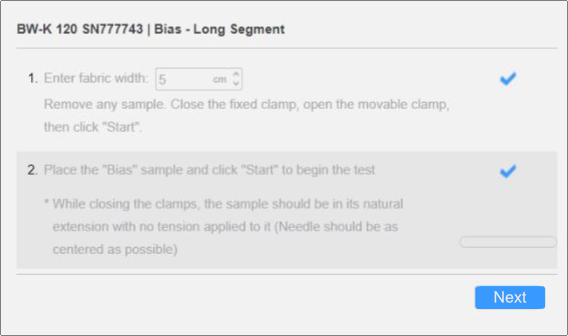

The test is complete when two blue ticks are displayed on the right side of the page.
-
Click Next.
