Note
If you have already completed Mass Calculation, skip ahead to Thickness Test.
To run the mass test in the FAB:
-

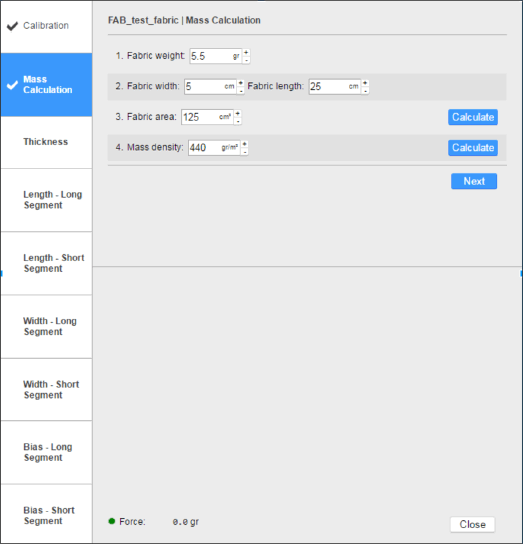

On the list on the left side of the page, ensure Mass Calculation is highlighted. The following screen is displayed.
-
Use a digital scale to weigh the three samples together and divide by 3 to get the fabric weight in grams. Make sure the value has 1 or 2 decimal places and type the result into Fabric weight.
-
Measure the length and width of one sample, then:
-
At Fabric width, type in the width of the sample.
-
At Fabric length, type in the length of the sample.
-
-
At Fabric area, click Calculate. The area is displayed.
-
At Mass density, click Calculate. The density is displayed and the mass is calcualted.
-
Click Next.
