Using the Folded Shirt
This feature is superseded by Fold & Hang.
The Folded Shirt feature is an optional extra. For price and other information, contact sales@browzwear.com.
Using the feature disables the old Folded Shirt (Labs) feature.

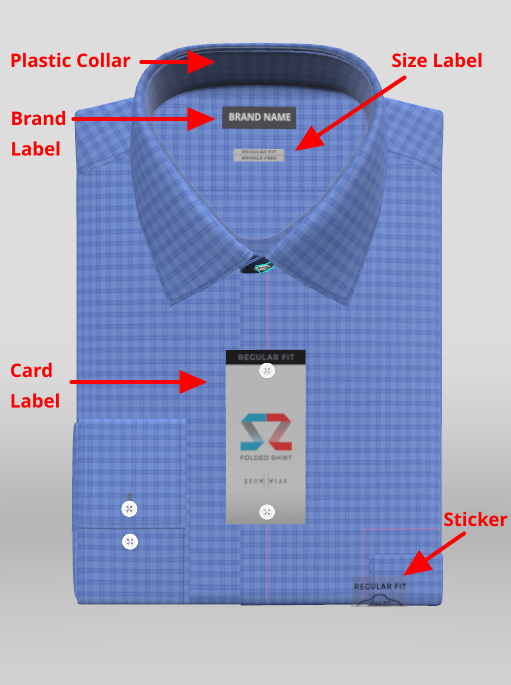

The Folded Shirt feature is enabled with a ready to use file provided in VSP format, based on pattern pieces provided by you. The file can be used to produce photo-realistic, true-to-life 3D images of a folded shirt as it would be displayed for sale.
Editing a Folded Shirt
You can edit the materials in a folded shirt in the same way as you normally would edit a material in a garment. You must maintain the integrity of the file by not editing the pattern pieces. Beyond that, you can make whatever edits you want. For example, you can change the artwork used for a label, but you should not change the shape of a pattern piece. And you can edit in the 2D or the 3D window.
Once you are ready to create your snapshots, if you have a SmartDesign license, you can use the batch simulation quality review tool. For more information, refer to Batch Simulation Quality Review Tool.
Plastic Collar

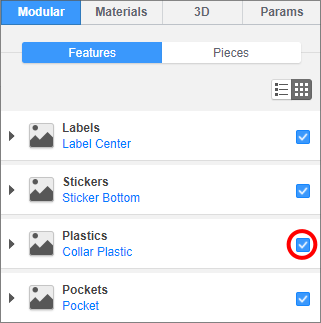

If using SmartDesign, you can remove the plastic insert from the collar. To do so, on the Modular tab, clear Plastics.
Brand Label and Size Label
The labels are artwork material.
To view the artwork:
-
If the Materials tab is not already open, on the Resources tabs, click Materials.
On the Materials tab, go to the Artwork section. The labels are displayed.

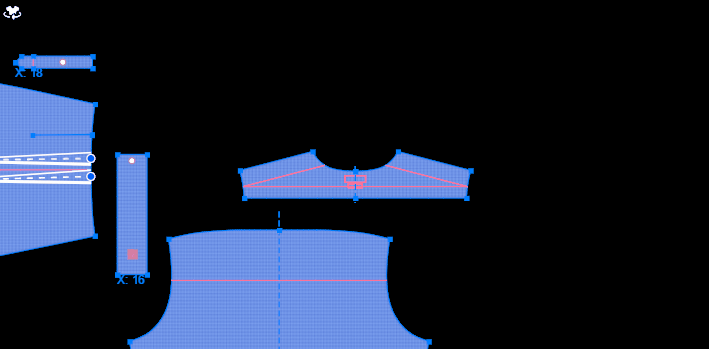

To view the labels on the pattern piece:
In the 2D window, click
. The window displays the inside (or back) of all pattern pieces.Go to the yoke pattern piece. The labels are displayed.

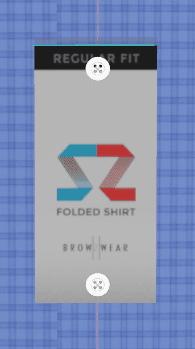

Card Label
The card label is artwork material.
To view the artwork:
-
If the Materials tab is not already open, on the Resources tabs, click Materials.
On the Materials tab, go to the Artwork section. The card label is displayed.
The card label has its own bounding box. In the 3D window, you can drag the card label to change which part of it is displayed.
Sticker
The sticker is artwork material.
To view the artwork:
-
If the Materials tab is not already open, on the Resources tabs, click Materials.
On the Materials tab, go to the Artwork section. The sticker is displayed.
The sticker has its own bounding box. In the 3D window, you can drag the sticker to change which part of it is displayed.
If the folded shirt is no longer displayed in the 3D window, to view it again:
On the Main toolbar, click Snapshots. The available snapshots are displayed.
Click Folded Shirt. The folded shirt displays in the 3D window.
