In the 3D window, you can:
-
Save a custom view
-
Select a previously saved custom view
-
Import a custom view
-
Export a custom view
For each of these actions, you use the Camera Views pane.
To open the Camera Views pane:
-
On the 3D toolbar, click
. A menu is displayed.
-

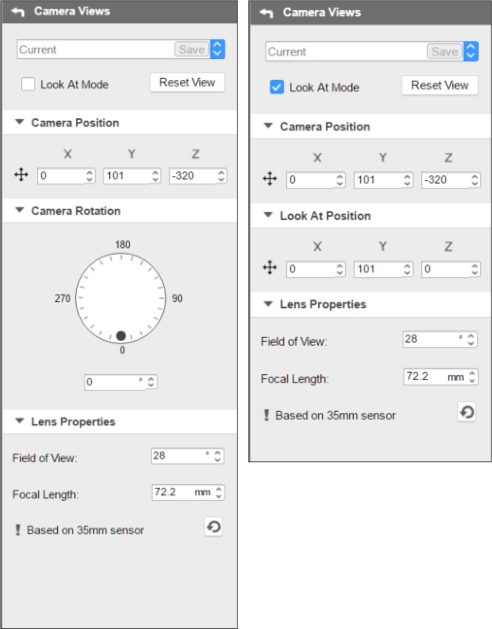

Click Edit/Add 3D View. The Camera Views pane is displayed. The display depends on whether you are in normal or Look At mode.
To close the Camera Views pane:
-
Click
.
For more information, expand the following:
Saving a Custom View
You can save a custom view for the 3D window for reuse, ensuring you have a consistent view of the dressed garment.
To save a custom view, do one of the following:
Method 1
-
Adjust the view in the 3D window as required.
-
If not already displayed, open the Camera Views pane.
-
In the text box at the top of the Camera Views pane, type a name for the view you want to save.
-
Click Save.
Method 2
-
If not already displayed, open the Camera Views pane.
-
Click
to view previously saved views. If you select one, the 3D window display automatically adjusts.
-
Select Look At Mode if you want the view to use this mode. For more information, refer to Using Look At Mode.
-
Adjust the view in the 3D window using the mouse, or edit the settings in the Camera Views pane, or a combination of these.
Setting
Description
Camera Position
The location of the camera on the X, Y, and Z axis. Type in the values you want.
Note that changing the X axis automatically adjusts the Camera Rotation.
Camera Rotation
Note
Not available in Look At mode.
The camera angle in degrees. You can:
-
Type in the value you want
-
Click on the wheel, or
-
Drag the black circle
Changing the rotation automatically adjusts the X and Y axis of the Camera Position.
Look At Position
Note
Only available in Look At mode.
The location of the camera on the X, Y, and Z axis. Type in the values you want.
Lens Properties
Type in the value you want for Field of View and Focal Length.
Click
to reset these values.
-
-
In the text box at the top of the Camera Views pane, type a name for the view you want to save.
-
Click Save.
Selecting a Previously Saved Custom View
To select a custom view:
-
Click
-
Click the view you want to use. The view in the 3D window is adjusted.
Importing and Exporting Views
You can export your view settings to a file. This allows another user to import your settings. Of course, you can also import another user's view settings.
To export view settings:
-
If not already displayed, open the Camera Views pane.
-

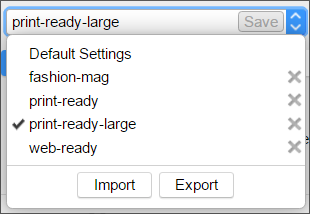

At the top of the Camera Views pane, click
A menu is displayed with previously saved settings.
-
If you want to export the current settings:
-
Click
-
Click Export. A file explorer window is displayed.
-
Navigate to where you want to export the file, and click Save.
-
-
If you want to export settings that are different from the current settings:
-
Click
-
Select the setting you want to export. The name of the setting is displayed in the text box.
-
Click
-
Click Export. A file explorer window is displayed.
-
Navigate to where you want to export the file, and click Save.
-
To import view settings:
-
If not already displayed, open the Camera Views pane.
-
At the top of the Camera Views pane, click
A menu is displayed with previously saved settings.
-
Click Import. A file explorer window is displayed.
-
Navigate to where the exported file is located, and click Open.
