Viewing Fabrics

Viewing Fabrics

To view fabrics:

  1. If the Materials tab is not already open, on the Resources tabs, click Materials.

    Materials

  2. If not already open, click the Garment tab.

    Garment tab is open

  3. Go to the Fabrics section. A thumbnail is displayed for each fabric.

To change the thumbnail size, at the top of the Materials tab, click Menu, then click the desired thumbnail size. .

Hover over a fabric thumbnail to view options.

Fabric thumbnail Fabric thumbnail

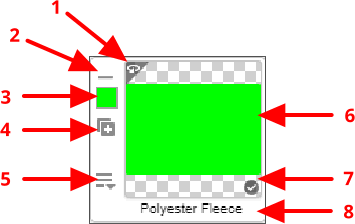

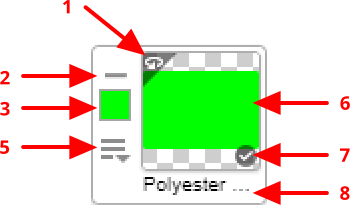

Small and medium thumbnail (image enlarged) Large thumbnail



Label Description

1

The reverse icon displays if the face and back of the fabric are different colors, or have different diffuse texture images. Hover over the icon to switch between the two sides of the fabric.

2

Displays if the fabric is assigned to a piece.

  • Click Remove fabric to remove the fabric from all pieces.

  • If the fabric is not assigned to a piece, Delete is displayed. Click Delete fabric to delete the fabric.

3

Swatch of the diffuse color.

4

Large thumbnail only.

Click Clone to clone the fabric.

Note: If using small or medium thumbnails, Clone Fabric displays in the menu described in label 5.

5



Click Click to display a menu to display a menu.

  • 2020 May Edition and newer

    For vector fabrics:

    Vector fabric menu

Note: If using large thumbnails, Clone Fabric displays instead as a separate icon.

6 How the fabric texture displays.

7

The icon displays if the fabric is assigned to a piece.

8 Fabric name.

For more information, refer to Viewing Fabric Properties.
