Adding Trim to a Garment

This section deals with adding trim, other than smart buttons and zippers, to a garment.

Smart buttons and zippers have unique properties. For more information, refer to:

Trim objects are either:

  • Edge assignable - can only be assigned to an edge or line

  • Piece assignable - can only be assigned to a piece as an internal element

To add trim to a piece, edge, or line:

  1. If the Materials tab is not already open, on the Resources tabs, click Materials.

    Materials

  2. If not already open, click the Garment tab.

    Garment tab is open

  3. From the appropriate Trims section, drag the trim to the piece, edge, or line in the 2D window.

If you assign trim to a line or edge, it automatically repeats along the length of the line or edge.

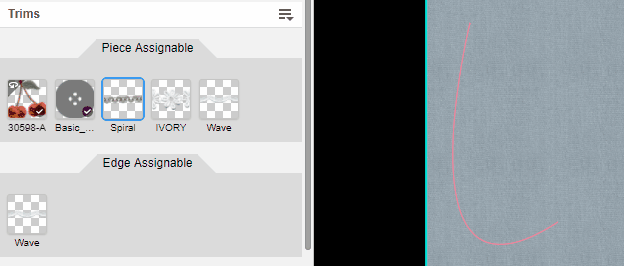

The following image shows 2D trim being added to a curved line.

Adding trim to a line



Alternatively:

  1. If the Materials tab is not already open, on the Resources tabs, click Materials.

    Materials

  2. If not already open, click the Garment tab.

    Garment tab is open

  3. On the Main toolbar, click Assign.

    Assign

  4. In the Trims section, click the trim.

    Ensure you have selected the trim you want. You can check by viewing the Material in the Horizontal contextual menu.

    Trim is selected

  5. On the Horizontal contextual menu, ensure Pieces is selected.

    Pieces is selected

  6. In the 2D window, the cursor changes when over a piece to confirm the application is in assign mode. Click on the piece, edge, or line you want to assign the trim to.

    Assign mode cursor

    The trim is assigned to the piece.

You can also drag the trim to the piece, or assign the trim to the piece, in the 3D window.

Video available For an example of how to add drawcords (a type of trim) to a garment, check out the video: Drawcords
