When garment simulation is finished, Vstitcher saves the final simulated garment as a snapshot. (For exceptions, refer to Creating a Snapshot). Snapshots work as a reference point, allowing you to quickly retrieve previously simulated output of a dressed garment.
There are the following types of snapshot:
-
Automatic: created each time a simulation finishes, overwriting the previous snapshot for the same avatar.
-
Manual: user created. Manual snapshots are not overwritten, but only drape is captured. Therefore, if you change stitching, fabric, or a pattern piece, you need to update the manual snapshot.
For more information, expand the following:
Viewing Snapshots
To view snapshots:
-

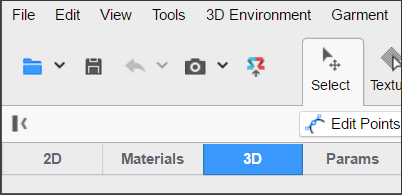

On the Resources tabs, click 3D.
-

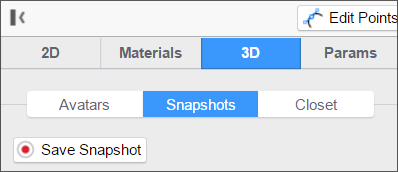

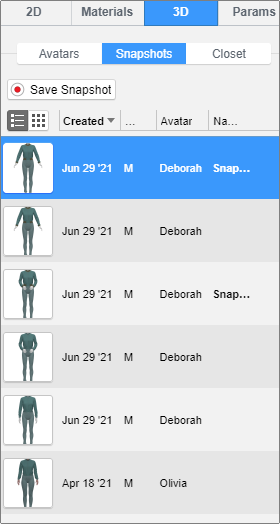

On the 3D tab, click Snapshots. The available snapshots are displayed.
Alternatively, to view snapshots, on the Main toolbar, click Snapshots. The available snapshots are displayed.
Snapshots UI Update
The Snapshot tab (in the Resources tabs) displays helpful user feedback relevant to snapshots.
-
If you make a change to the current snapshot which triggers simulation, or otherwise trigger simulation, a blue border is displayed around the snapshot.
Once simulation is complete or Finish is clicked, the new snapshot is highlighted in blue. It shows the snapshot currently displaying in the 3D window.
-
If you take any editing action which deletes the current snapshot, a system generated warning is displayed.
-
When hovering over a snapshot in the Snapshots tab, the related pattern pieces are outlined and highlighted in the 2D window.
-
When loading a snapshot, “Loading Snapshot” is displayed in the 3D window.
-
You can edit the name of manually added snapshots.
To edit the name of a manually added snapshot:
-
In the Snapshots tab, double-click the name of the snapshot you want to edit.
-
Type in the new name, then press Return.
-
Note
Shoes and Snapshots
-
Shoes are saved within snapshots, both automatic and manual.
-
Adding or replacing shoes is updated in an automatic snapshot on simulation.
-
Loading a saved snapshot loads the shoes saved with it.
Deleting snapshots
To delete a snapshot:
-
On the Resources tabs, click 3D.
-
On the 3D tab, click Snapshots. The available snapshots are displayed.
-
Go to the snapshot you want to delete and hover over it. Click X. The snapshot is deleted.

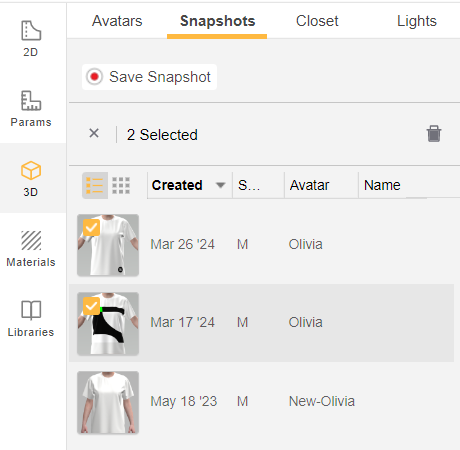

Version 2024.1: It is now possible to bulk delete snapshots.
Creating a Snapshot
When garment simulation is finished, VStitcher automatically saves the final simulated garment as a snapshot.
Note
-
Snapshots are automatically generated for each different avatar, avatar pose, and garment size used in a garment file.
-
Snapshots are not automatically created for a change in stitching, pattern shape, or fabric unless you dress the avatar again.
-
Each time a simulation finishes, any newly generated snapshot is automatically saved over the previous snapshot for the same avatar.
-
If you want a snapshot to persist, you must manually create a snapshot.
To manually create a snapshot:
-
Ensure the avatar has been dressed and the garment simulation has finished:
-
On the Main toolbar, click Dress.
-
On the Main toolbar, click Finish.
-
-
On the Resources tabs, click 3D.
-
On the 3D tab, click Snapshots.
-

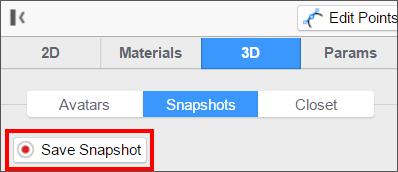

On the Snapshots tab, click Save Snapshot.

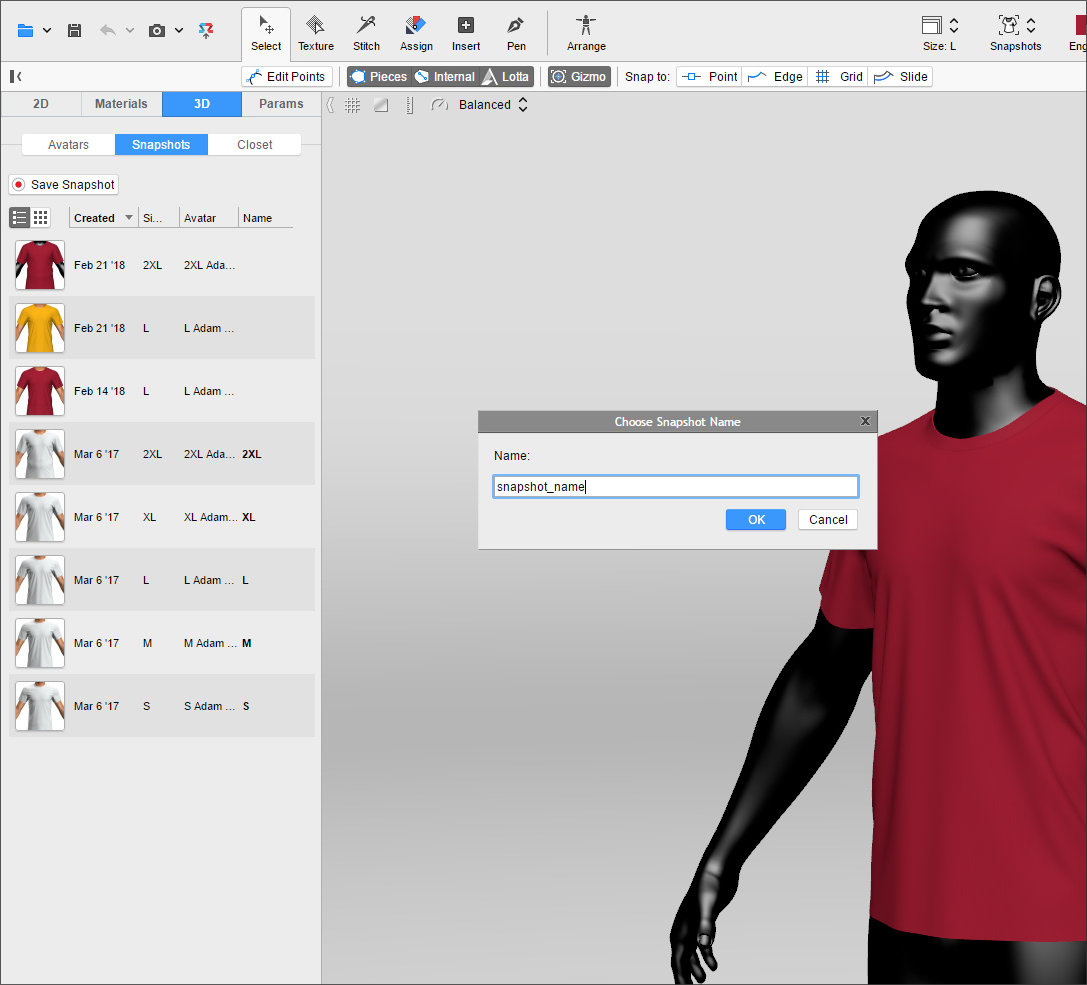

The Choose Snapshot Name dialog box is displayed.
-
Type a name for the snapshot and click OK.
Note
Only manually saved snapshots have a name, making it easy to distinguish them from automatically generated snapshots.
Using Snapshots
When you select a snapshot, the dressed garment and avatar are displayed in the 3D window.
Some typical uses of snapshots are:
-
For quick transitions between avatars and poses
-
For saving garment adjustments made with the 3D styling tools
-
For saving views with pieces hidden, subtracted, or added
-
To reduce the need to re-dress and re-simulate the garment when making minor aesthetic adjustments
To use a snapshot:
-

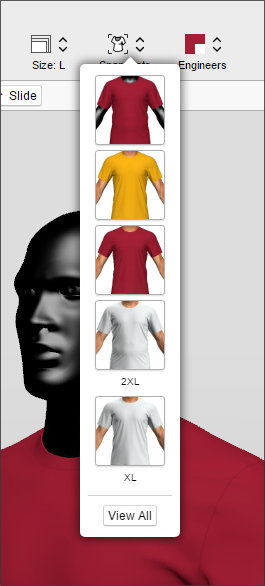

On the Main toolbar, click Snapshots. Snapshots are displayed.
-
Click the snapshot you want.
Note

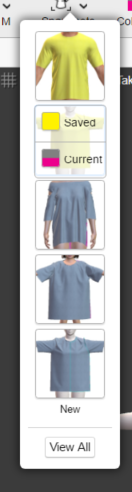

If you hover over a snapshot thumbnail which is a different colorway from the currently displayed snapshot, the following options are displayed:
-
Saved - click to load the snapshot in the colorway it was saved in.
-
Current - click to load the snapshot in the currently active colorway.
The selected snapshot is displayed in the 3D window.
-
Snapshots and Edited Poses
Snapshots are saved in a pose. If you open a snapshot with an editable pose which is not in your list of available poses:
-
The snapshot opens in the pose it was saved in
-
The Poses pop-up pane is displayed with:
-
The pose name marked with a blue circle
-
A message about adding the pose
-

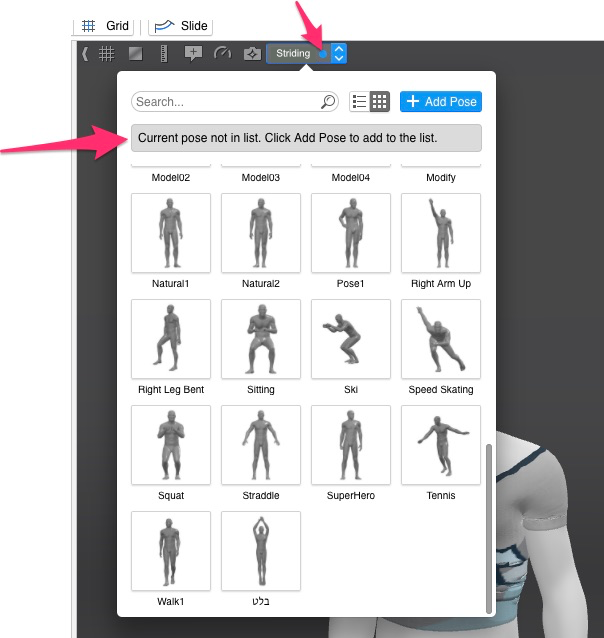

The following image shows an example of the Poses pop-up pane with the blue circle and the message.
To add the pose to your list of poses:
-
Click Add Pose.
-
In the Context view, the Edit Pose pane is displayed.
-
In the Edit Pose pane, type the pose name, and click Save.
For more information, refer to Designing Avatar Poses Overview.
Loading a Snapshot on a Different Avatar
This feature allows you to load a snapshot on a different avatar without needing to trigger simulation.
To load a snapshot on a different avatar:
-
On the Resources tabs, click 3D, then Avatars.
-
Double-click the avatar you want to use.
-
On the Resources tabs, click Snapshots.
-
On the Snapshots tab, hover over the thumbnail of the snapshot you want to use.
-
Click . A menu is displayed.
-
Click Saved Colorway - Garment Only. The saved colorway garment from the snapshot is loaded on the avatar that is in the 3D window.
The following table describes the options available in the menu.
Option
Description
Saved Colorway & Avatar
Loads the current snapshot on the saved avatar and the saved colorway.
Current Colorway & Avatar
Loads the snapshot on the saved avatar and the current colorway.
Note
If the saved colorway and the current colorway are the same, this option is disabled.
Saved Colorway - Garment Only
Loads the snapshot on the avatar that is in the 3D window using the saved colorway.
Current Colorway - Garment Only
Loads the snapshot on the avatar that is in the 3D window using the current colorway.
Note
If the saved colorway and the current colorway are the same, this option is disabled.
Note
Once you have loaded a snapshot on a different avatar, you can use the new move tool in 3D styling to move the snapshot to better align it with the avatar.
