Adding Trim to a File
You can add to the trims available for use in your garment, by adding trim objects to the garment file.

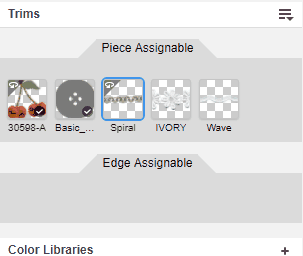

To add piece assignable trim to a file, do one of the following:
|
|
|
|
|
Note: If using large thumbnails, Clone Trim displays instead as a separate icon when you hover over the trim. |
|
|
|
|

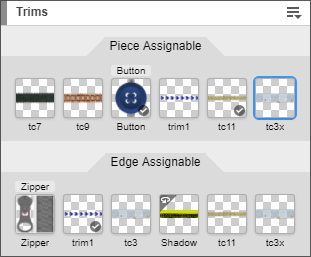

To add edge assignable trim to a file, do one of the following:
|
Note: If using large thumbnails, Clone Trim displays instead as a separate icon when you hover over the trim. |
|
Alternatively:
|
|
|
|
|
|
|
You can create a group trim material. Like a single trim, a group trim repeats along a line or edge it is assigned to.
To create a group trim material, you create a group trim, and add the trims to the group. To create a group trim, you must first have edge assignable trims. If you need to add trim, for more information, refer to Adding Edge Assignable Trim to a File.
To create a group trim from existing edge assignable trim material:
-
If the Materials tab is not already open, on the Resources tabs, click Materials.
-
If not already open, click the Garment tab.
-
Go to the Trims section.
In Trims, in the Edge Assignable section, drag one trim over another edge assignable trim. A group trim is created.
To add further trims to the group, drag them from the Edge Assignable section.

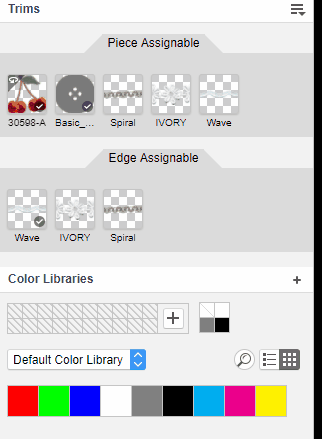

The following image shows the creation of a group trim.
Alternatively:
-
If the Materials tab is not already open, on the Resources tabs, click Materials.
-
If not already open, click the Garment tab.
-
Go to the Trims section.
-
In Trims, in the Edge Assignable section, hover over the trim you want to start the group.
-
Click . A menu is displayed.
Click Create Group. The group is created with the trim.
To add further trims to the group, drag them from the Edge Assignable section.
