Introduction to Materials
In VStitcher and Lotta, materials are:
Fabrics Overview - core material forming the pattern pieces.
Seams Overview - images that are attached to, and automatically repeat along, the edge of a piece, or an internal line.
Artwork Overview - images that can be applied to a piece.
Trims Overview - 2D or 3D decorative items that can be added to your garment.
In VStitcher and Lotta, you can use asset libraries to access materials for use in your garments.
For an overview, check out the videos: Using Materials
Using Lower Layer Maps
You must enable enhanced layer blending to use this feature.
To enable enhanced layer blending:
On the Main menu, click Garment.
Click Enhanced Layer Blending.
You can use this feature to blend materials to underlying materials. For example, to add a special finish effect to jeans, or for realistic display of knitted pieces.
Select this option to:
Disable all the material maps other than diffuse.
Inherit the maps of all the materials that are under (a lower z-index) the selected material.
For example, assume you have artwork on top of a pattern piece. Selecting the option for the artwork means that all the artwork material maps, except diffuse, are ignored. In addition, the material maps for the pattern piece are used by the artwork.
If you have artwork on top of a pattern piece on top of another artwork on top of a base fabric, selecting the option for the top artwork means that all the artwork material maps, except diffuse, are ignored. In addition, the material maps for the pattern piece, the other artwork, and the base fabric are all used by the top artwork.

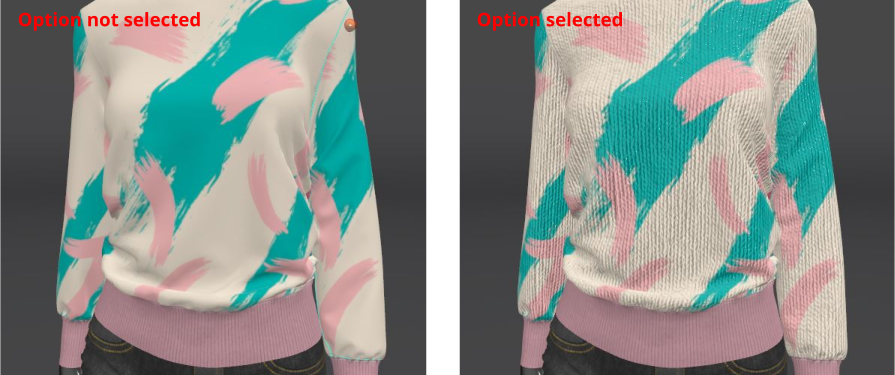

The following image shows the feature in use.
This feature is available when editing artwork, seam, and trim properties.
For more information, refer to:
